Left Turn Only Signs
The purpose of the Left Turn Only Sign MUTCD R3-1aP is to indicate to drivers that the lane or roadway ahead is designated for left turns only. It is used to provide clear guidance and prevent confusion or unsafe driving maneuvers at intersections and other locations where left turns are restricted.
Left Turn Only Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
High Intensity Prismatic | 18" x 24" | $58.19 | $55.28 | $52.37 | R3-1aP-1824-HIP | |
| 24" x 30" | $86.90 | $82.56 | $78.21 | R3-1aP-2430-HIP | ||
Full Cube Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
Full Cube Prismatic | 18" x 24" | $66.66 | $63.33 | $59.99 | R3-1aP-1824-UPG | |
| 24" x 30" | $95.70 | $90.92 | $86.13 | R3-1aP-2430-UPG | ||
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Full Cube Prismatic Reflective |
|---|---|
|
|
 |  |  |
 |
Sign Posts
Sign Installation Hardware
Other Turn Prohibited Signs
Specifications:
| Legend: | LEFT TURN ONLY |
| MUTCD Sign Code #: | R3-1aP |
| Shape: | Vertical Rectangle |
| Color: | BLACK on WHITE |

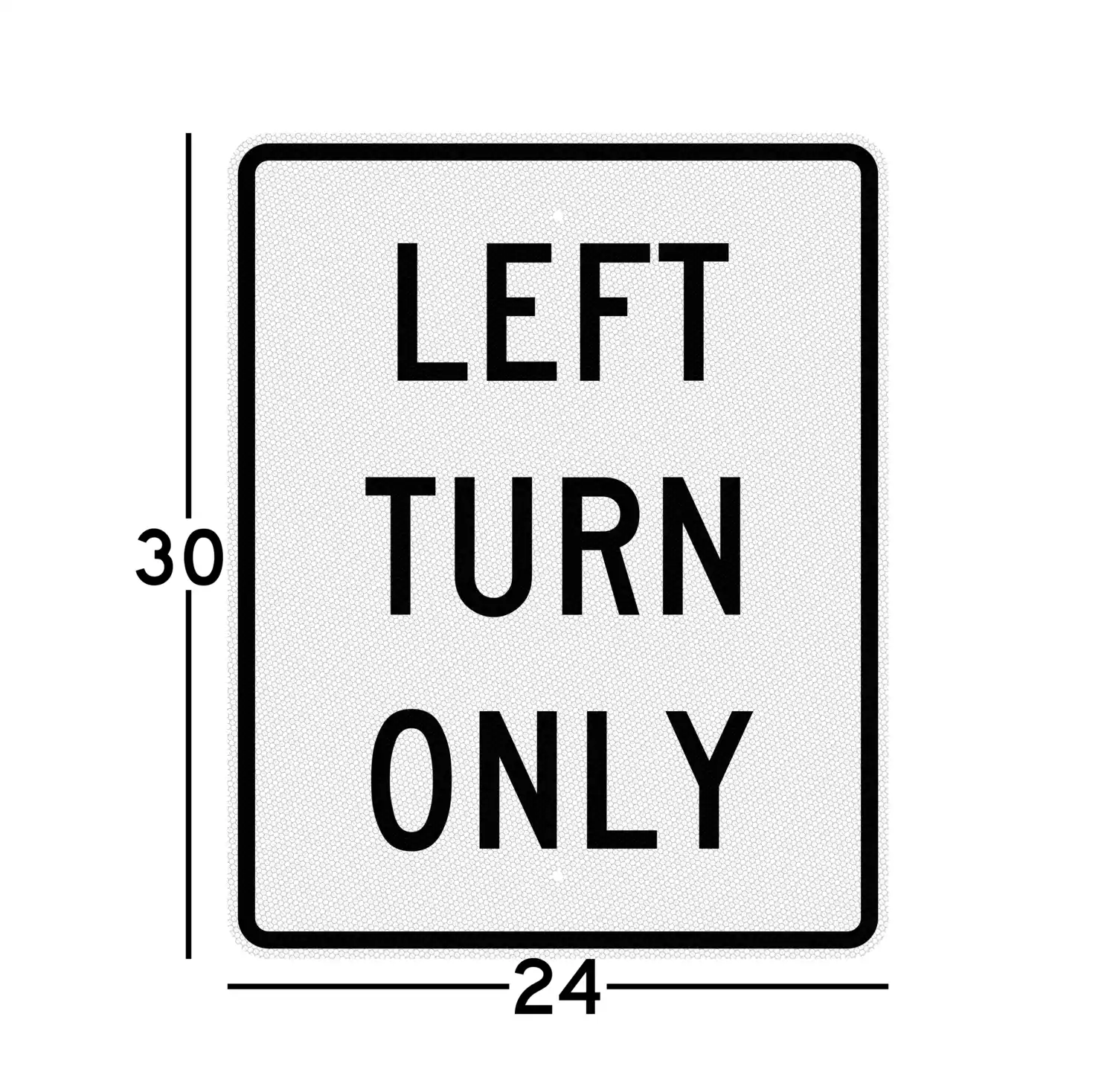

| Available Sizes and Weights: | Size: 18" x 24"; Ship Weight: 3.7 lbs |
| Size: 24" x 30"; Ship Weight: 6.2 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |

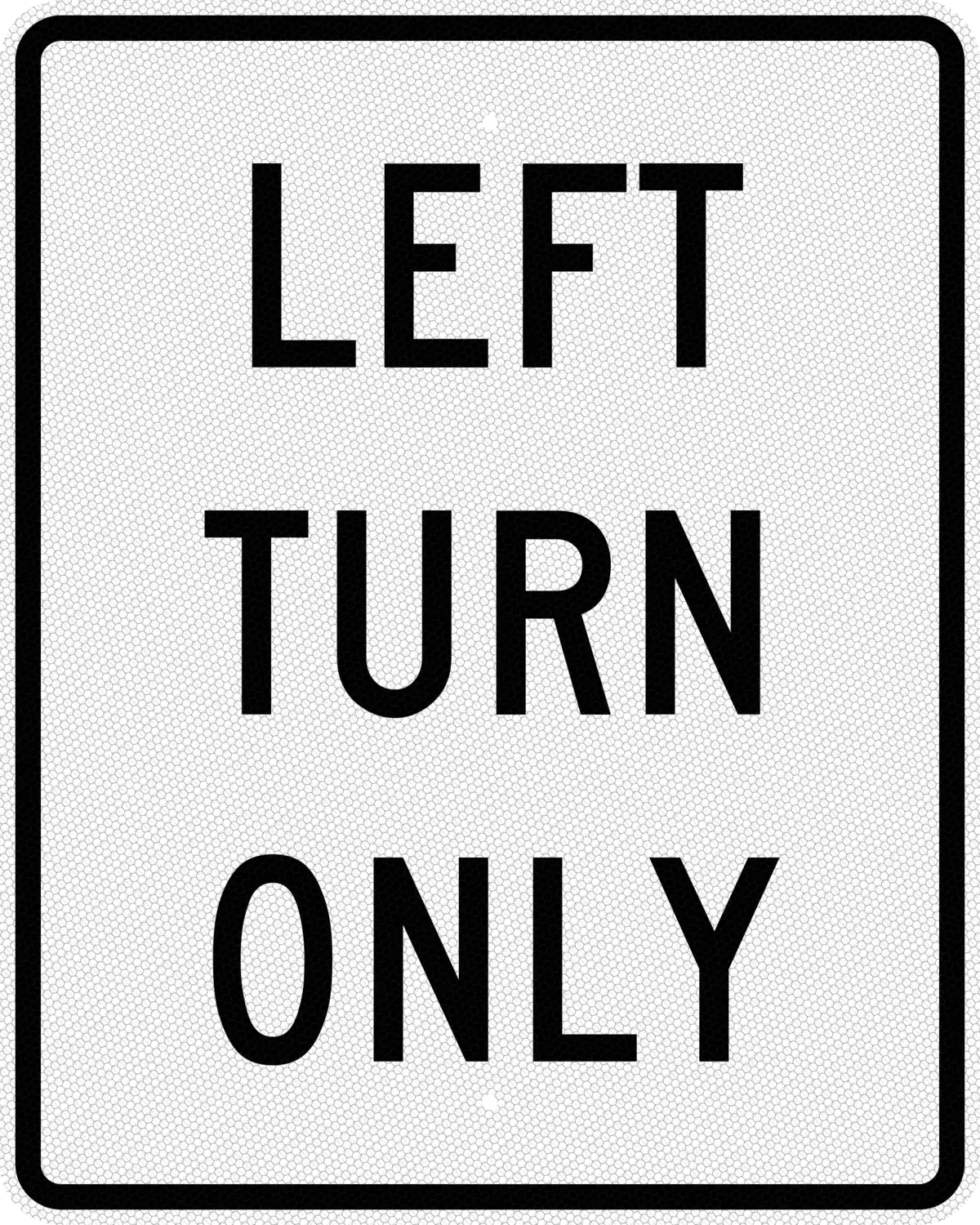

| Full Description: | R3-1aP have a white background color. The text and border are black and it is in the shape of a vertical rectangle. |

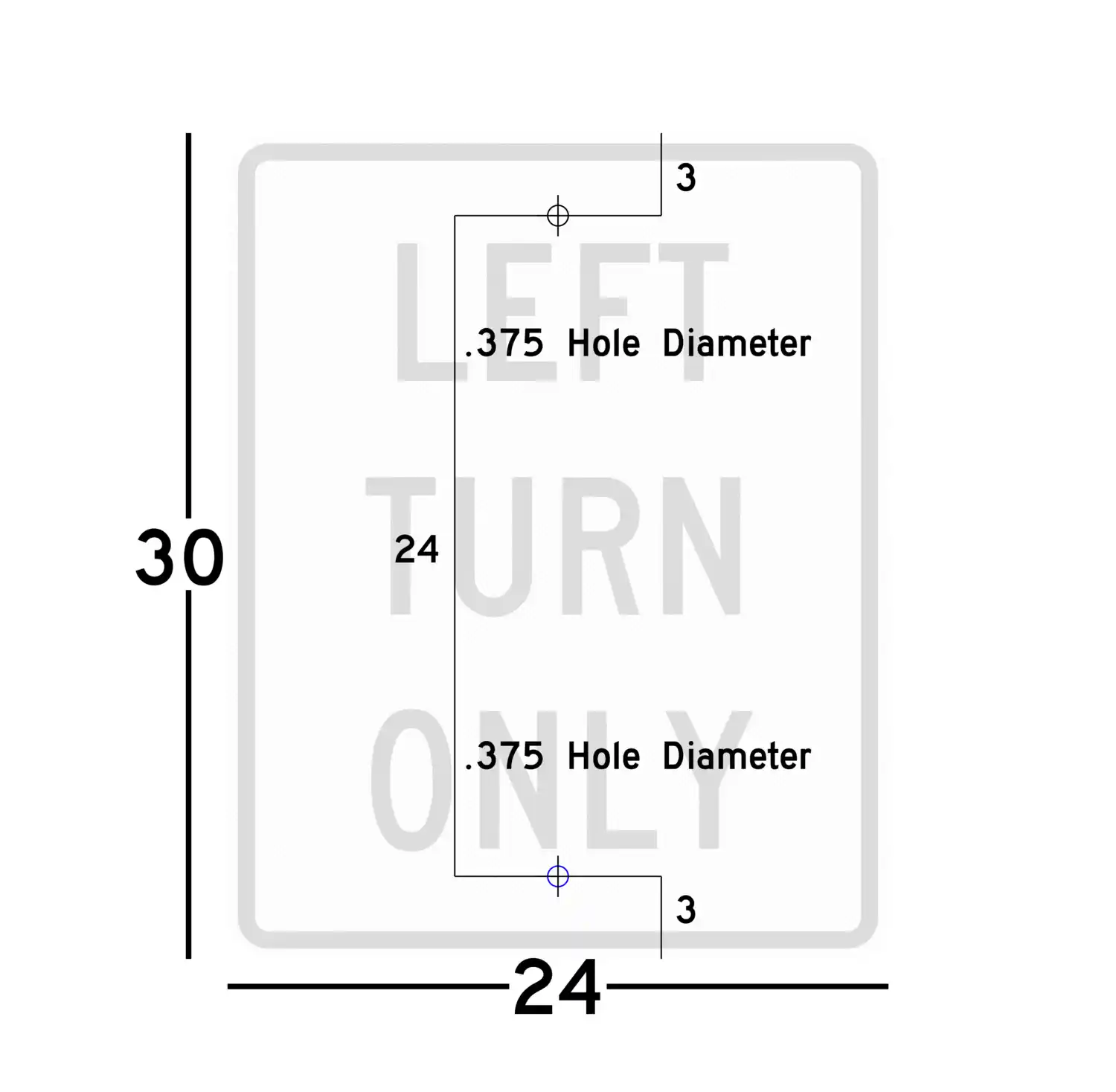

| Mounting Hole Placement: |  |
Example Use:
After a thrilling baseball game at the city stadium, thousands of fans are eager to head home or to the next stop in their evening. To facilitate a smooth and safe traffic flow out of the stadium's main parking lot, the city's traffic department has strategically placed a 'Left Turn Only' sign at the exit. This ensures that all vehicles departing the lot turn left onto the main roadway, preventing gridlock at the intersection and eliminating potential conflicts with incoming traffic from the opposite direction. By streamlining the movement of vehicles in this manner, fans experience a more efficient post-game drive, and local traffic disruptions are minimized.
