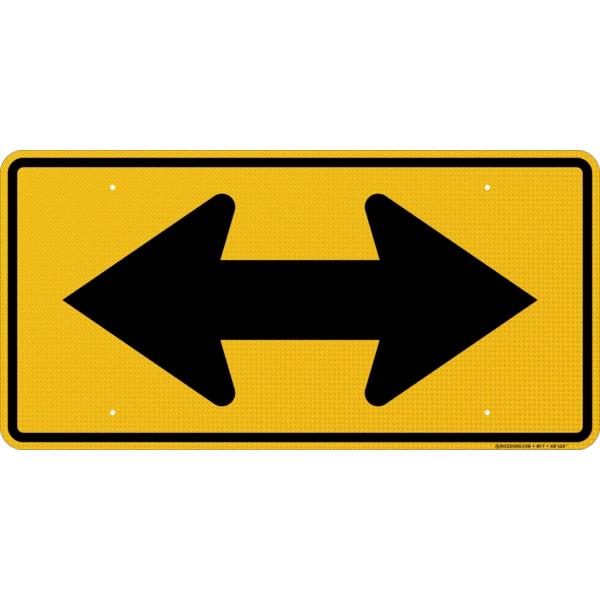

Large Double Arrow Signs
SKU# W1-7
The large double arrow sign informs drivers of the interesctions configuraiton and warns that they cannot continue driving straight, but must choose to turn either to the left or the right. This sign is often found at an T-interections where the driver is required to come to a complete stop. This sign is not appropriate to be placed in roundabouts.
MUTCD W1-7 Guidance
Large Double Arrow Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 20.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
High Intensity Prismatic | 36" x 18" | $79.75 | $75.76 | $71.78 | W1-7-3618-HIP | |
| 48" x 24" | $121.00 | $114.95 | $108.90 | W1-7-4824-HIP | ||
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
|---|---|---|---|---|---|---|
| 1 to 4 | 5 to 9 | 10 + | ||||
Fluorescent Yellow Prismatic | 36" x 18" | $88.99 | $84.54 | $80.09 | W1-7-3618-FYP | |
| 48" x 24" | $146.74 | $139.40 | $132.07 | W1-7-4824-FYP | ||
Available Reflective Finishes:
| High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
|---|---|
|
|
 |  |  |
 |  |  |
 |  |  |
Sign Posts
Sign Installation Hardware
Other Curve and Turn Signs
Catalog Page 19Click to view
Catalog Page 20Click to view
Catalog Page 21Click to view
Specifications:
| Legend: | LARGE DOUBLE ARROW |
| MUTCD Sign Code #: | W1-7 |
| Shape: | Horizontal Rectangle |
| Color: | BLACK on YELLOW |
| Available Sizes and Weights: | Size: 36" x 18"; Ship Weight: 5.6 lbs |
| Size: 48" x 24"; Ship Weight: 9.9 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
| Full Description: | W1-7 have a yellow background color. The text and border are black and it is in the shape of a horizontal rectangle. |
Example Use:
At a busy intersection where multiple lanes converge, a Large Double Arrow Sign can be effectively used to guide drivers and maintain smooth traffic flow. For example, consider a T-intersection where a two-lane road meets a four-lane road. To clearly indicate the possible movements for drivers approaching the intersection from the two-lane road, a Large Double Arrow Sign can be placed before the intersection. The sign would have one arrow pointing left and the other pointing right, thereby visually informing drivers that they have two options: to turn left or to turn right onto the four-lane road. This sign helps to preemptively organize traffic into appropriate lanes, encouraging drivers in the left lane to prepare for a left turn and those in the right lane to prepare for a right turn. By providing this clear, simple visual cue well ahead of the intersection, the Large Double Arrow Sign helps to reduce last-minute lane changes and enhances overall traffic safety and efficiency.
