Draw Bridge Signs
A Draw Bridge sign indicates the presence of a drawbridge ahead, which is a type of movable bridge that can be raised or lowered to allow for passage of boats or other watercraft. The sign serves as a warning for drivers to be prepared to stop and wait if the bridge is in operation, as well as to exercise caution while crossing the bridge when it is in the down position.
Draw Bridge Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 22.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
High Intensity Prismatic | 36" x 36" | $163.79 | $155.60 | $147.41 | W3-6-3636-HIP | |
48" x 48" | $244.20 | $231.99 | $219.78 | W3-6-4848-HIP |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
Fluorescent Yellow Prismatic | 36" x 36" | $179.08 | $170.13 | $161.17 | W3-6-3636-FYP | |
48" x 48" | $308.44 | $293.02 | $277.60 | W3-6-4848-FYP |
Available Reflective Finishes:
High Intensity Prismatic Reflective | Fluorescent Yellow Prismatic Reflective |
---|---|
|
|
Sign Posts
Sign Installation Hardware
Other Advance Traffic Control Signs
Click to view
Click to view
Click to view
Specifications:
Legend: | DRAW BRIDGE |
MUTCD Sign Code #: | W3-6 |
Shape: | Diamond |
Color: | BLACK on YELLOW |
Available Sizes and Weights: | Size: 36" x 36"; Ship Weight: 11.2 lbs |
Size: 48" x 48"; Ship Weight: 19.9 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
Fluorescent Yellow Prismatic Reflective on .080" Aluminum | |
Full Description: | W3-6 have a yellow background color. The text and border are black and it is in the shape of a diamond. |
Mounting Hole Placement: |

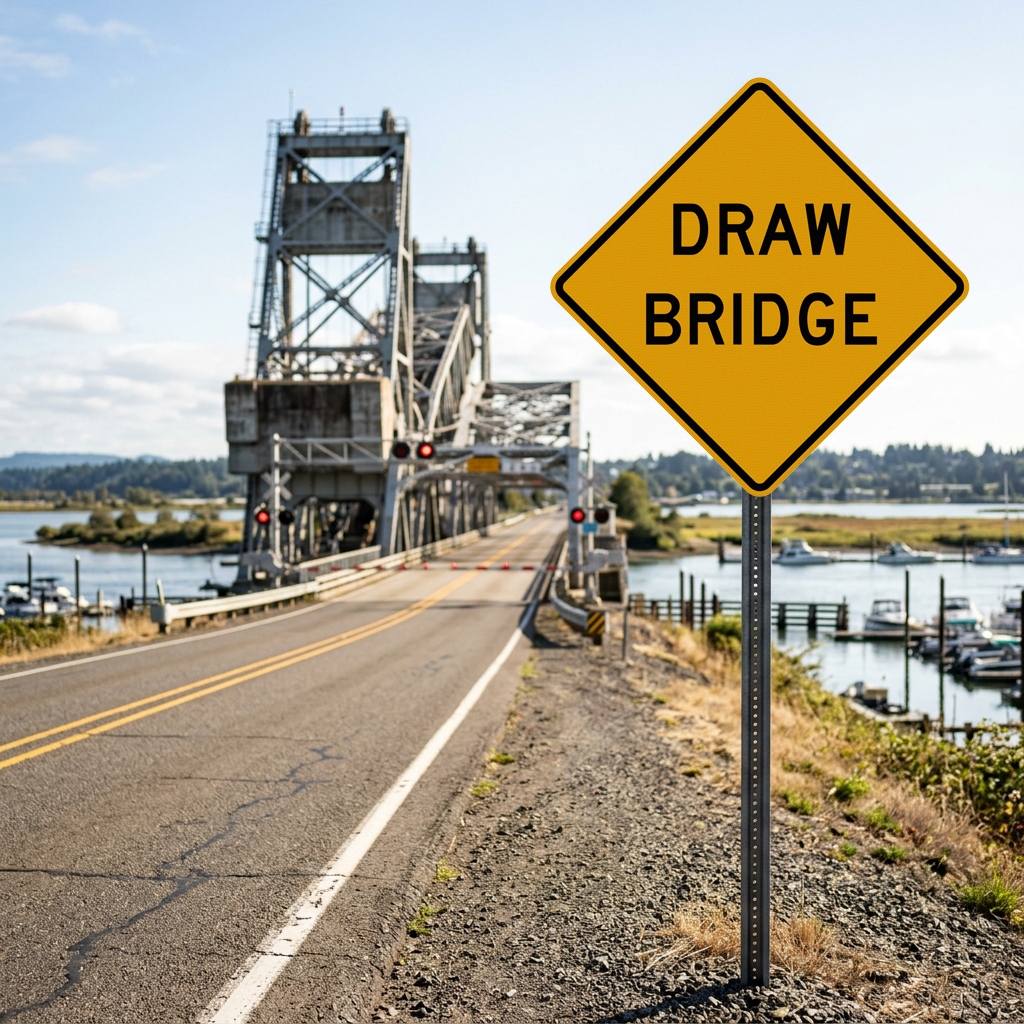

Example Use:
A Draw Bridge sign plays a crucial role in safeguarding both motorists and boaters by providing timely information and warning about the bridge's operational status. For instance, imagine a busy waterway where recreational boats often pass. On a sunny day, a family decides to drive to a nearby beach, while another family is sailing underneath the same route. As the vehicle approaches the draw bridge, the Draw Bridge sign, equipped with flashing lights and clear symbols, indicates the bridge is currently raised or about to be. The driver, alerted by the sign, slows down and waits for the bridge to be safely lowered, preventing a potentially fatal crash. Simultaneously, the boaters underneath can sail through without fearing a collision or getting trapped, confident the bridge won't be lowered prematurely. In this manner, the Draw Bridge sign ensures smooth and safe transitions for both road and waterway users.
