All Way Signs
SKU# R1-3P
The MUTCD R1-3P All Way Signs are used to indicate an intersection where all traffic approaching from different directions is required to stop and yield to other vehicles or pedestrians before proceeding; these signs are commonly used in areas with heavy foot traffic or where multiple roads intersect at one location.
All Way Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum

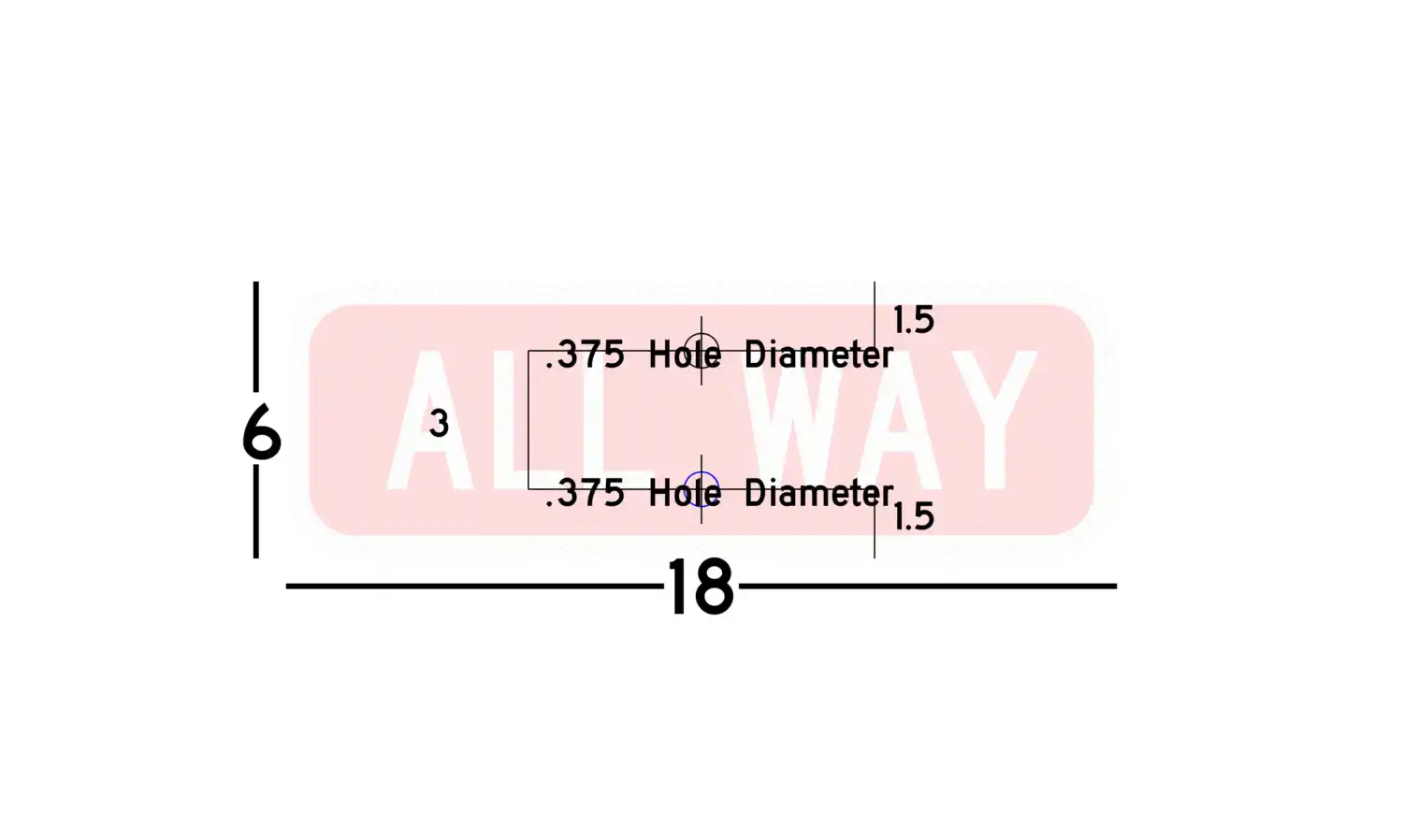

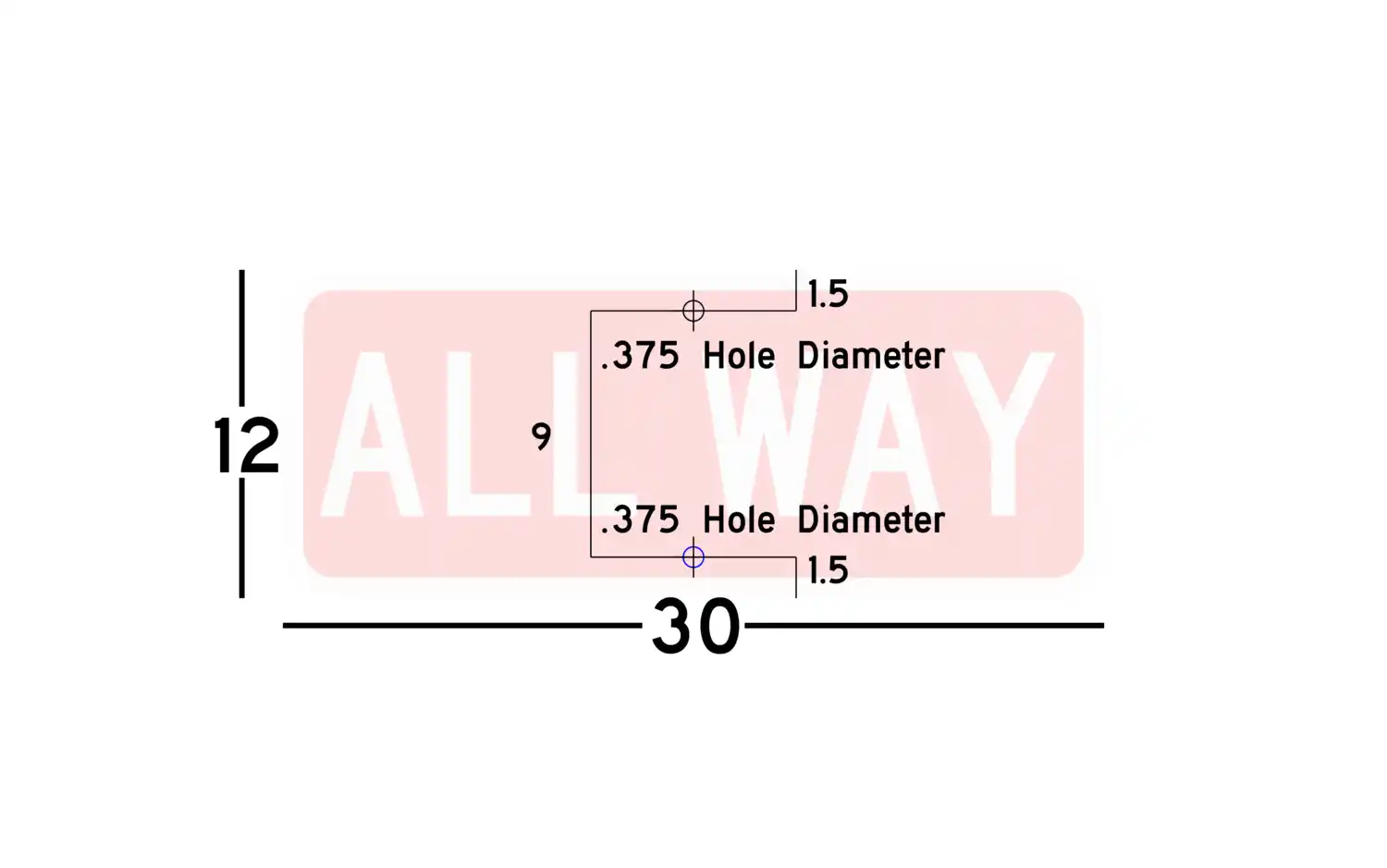

- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 5.
PRICE TABLE
High Intensity Prismatic Reflective on .080" Aluminum:
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic | 18" x 6" High Intensity Prismatic | All Way | 1 to 4: $26.07 5 to 9: $24.77 10 +: $23.46 |
SKU:R1-3P-186-HIP |
R1-3P-186-HIP |
30" x 12" High Intensity Prismatic | All Way | 1 to 4: $51.04 5 to 9: $48.49 10 +: $45.94 |
SKU:R1-3P-3012-HIP |
R1-3P-3012-HIP |
In Stock - Usually ships same or next business day.
Full Cube Prismatic Reflective on .080" Aluminum:| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
Full Cube Prismatic | 18" x 6" Full Cube Prismatic | All Way | 1 to 4: $35.09 5 to 9: $33.34 10 +: $31.58 |
SKU:R1-3P-186-UPG |
R1-3P-186-UPG |
30" x 12" Full Cube Prismatic | All Way | 1 to 4: $59.29 5 to 9: $56.33 10 +: $53.36 |
SKU:R1-3P-3012-UPG |
R1-3P-3012-UPG |
In Stock - Usually ships same or next business day.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Stop Signs

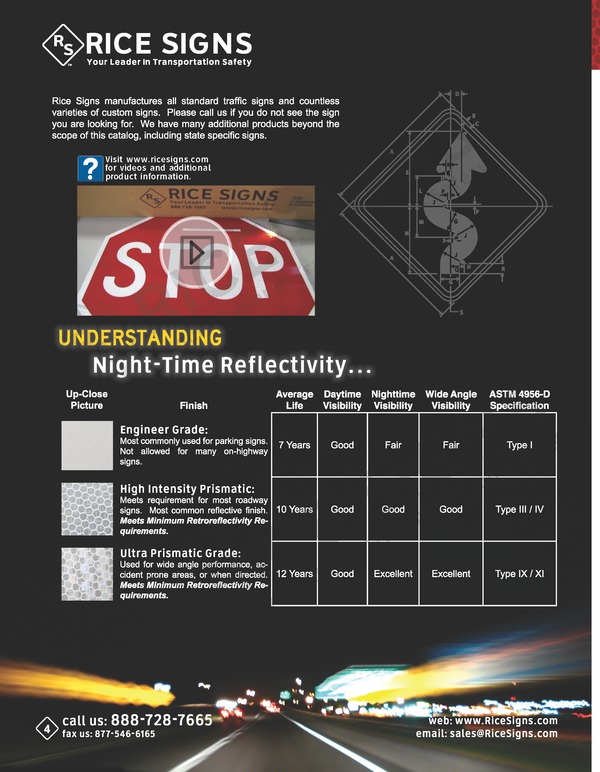

Catalog Page 4
Click to view
Catalog Page 5
Click to view
Catalog Page 6
Click to view
Specifications:
| Legend: | ALL WAY |
| MUTCD Sign Code #: | R1-3P |
| Shape: | Horizontal Rectangle |
| Color: | WHITE on RED |

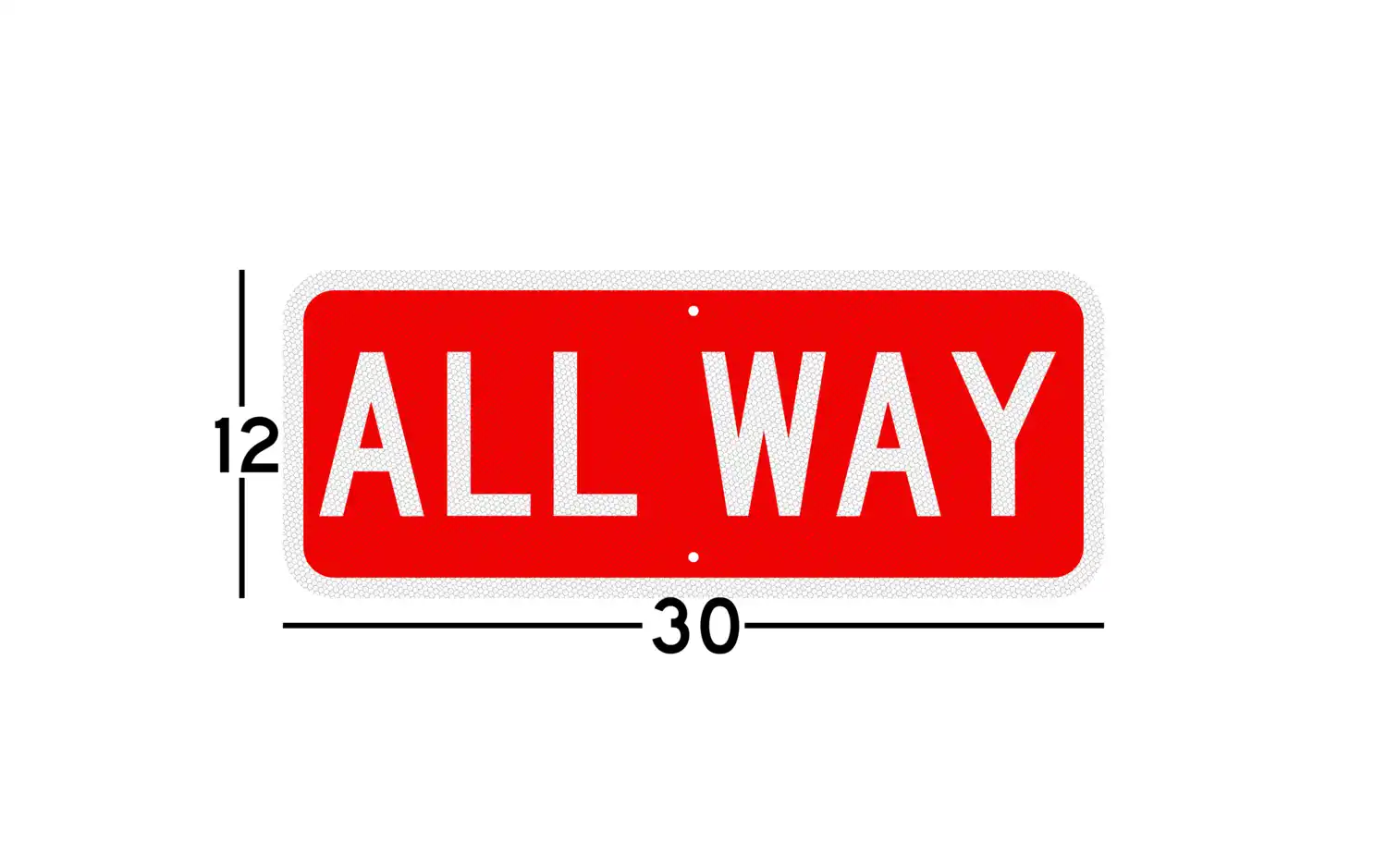

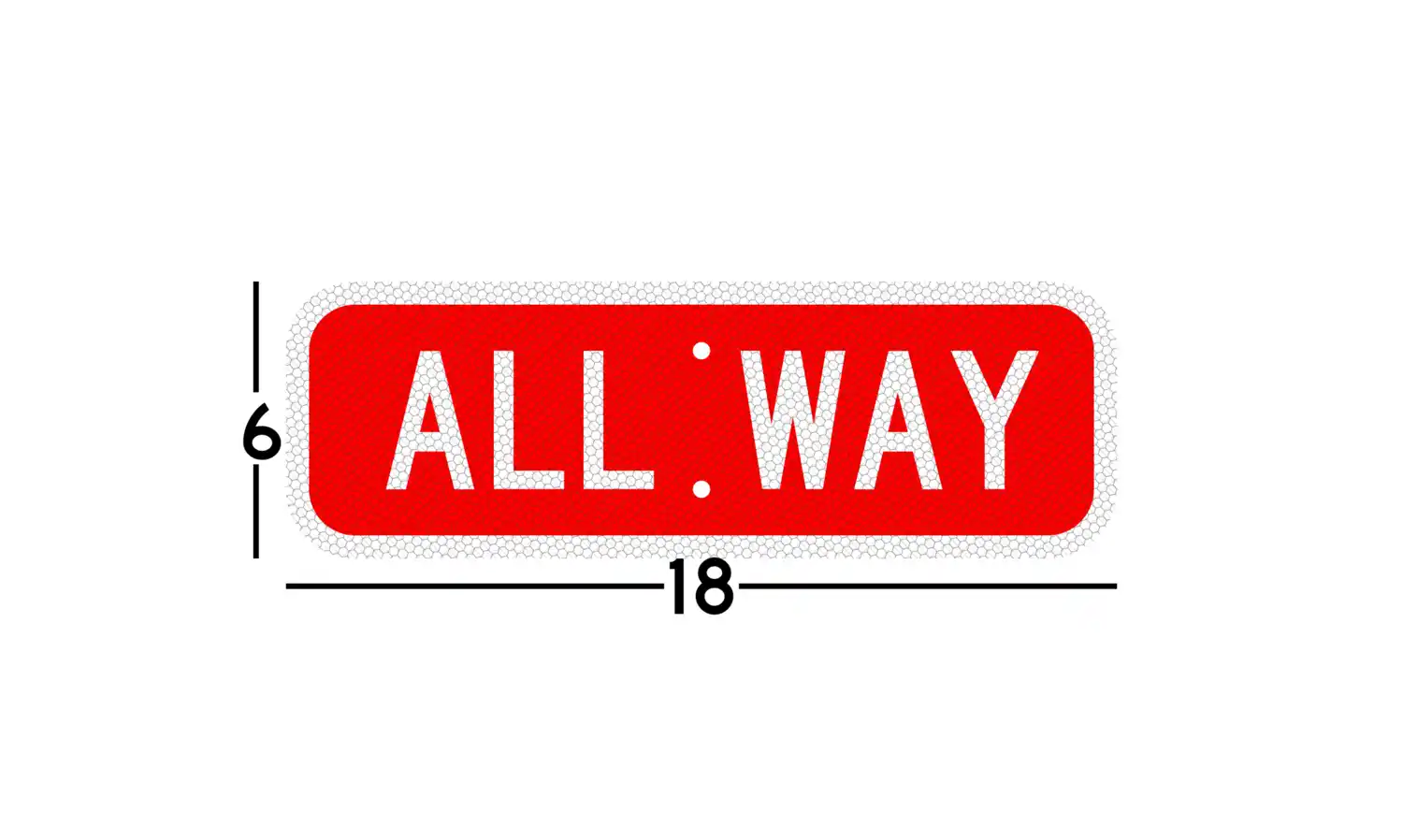

| Available Sizes and Weights: | Size: 18" x 6"; Ship Weight: 0.9 lbs |
| Size: 30" x 12"; Ship Weight: 3.1 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R1-3P have a red background color. The text and border are white and it is in the shape of a horizontal rectangle. |

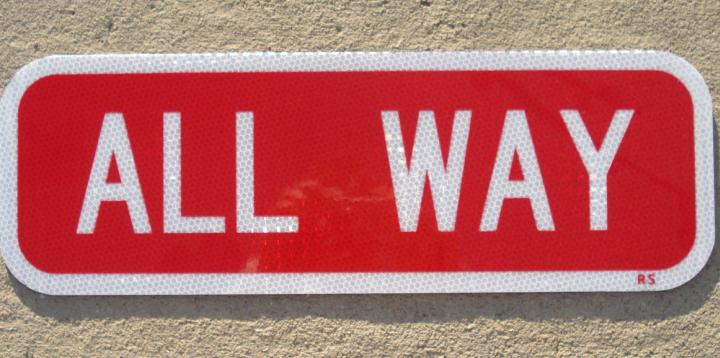

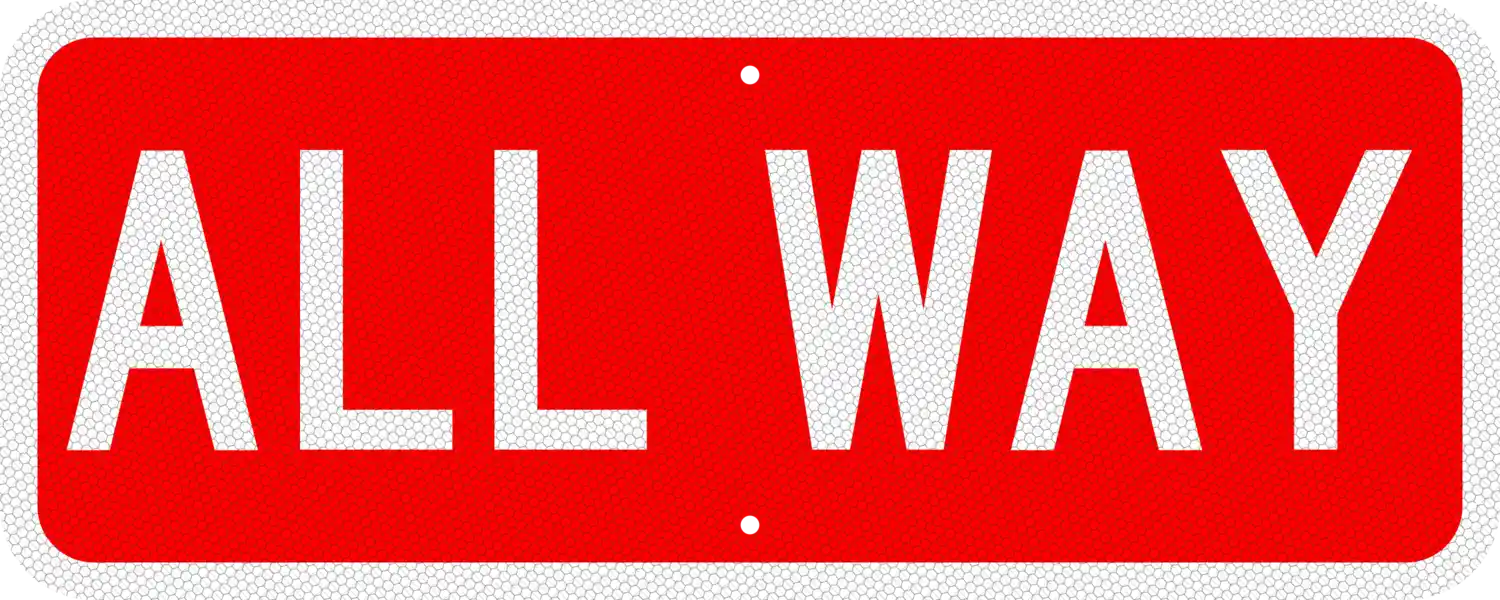

All Way Sign Photos:
