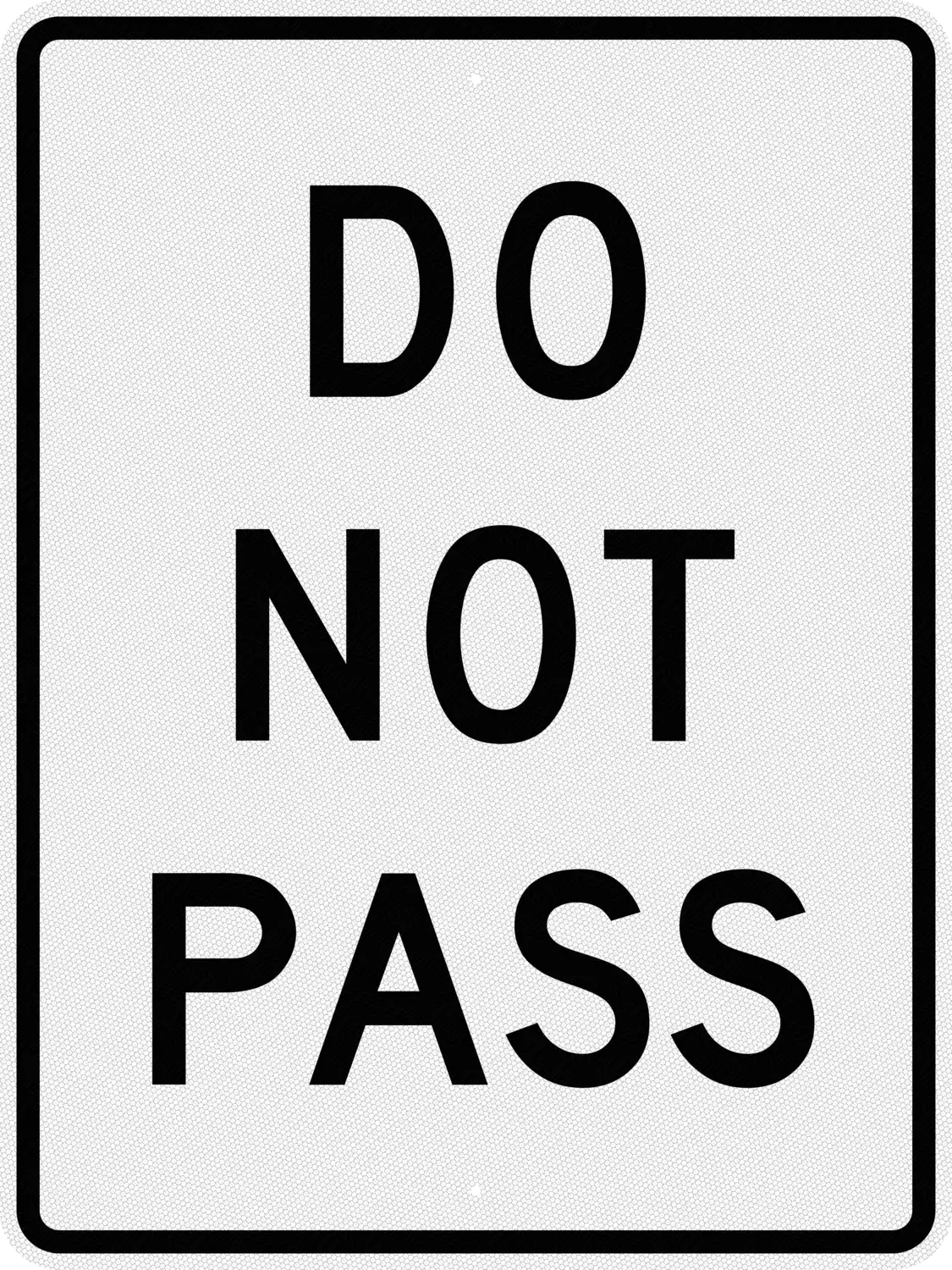

Do Not Pass Sign (R4-1)
R4-1 Price
High Intensity Prismatic Reflective on .080" Aluminum
| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
High Intensity Prismatic |
18" x 24" High Intensity Prismatic |
Do Not Pass | 1 to 4: $65.67 5 to 9: $62.39 10 +: $59.10 |
SKU:R4-1-1824-HIP |
R4-1-1824-HIP |
24" x 30" High Intensity Prismatic |
Do Not Pass | 1 to 4: $99.22 5 to 9: $94.26 10 +: $89.30 |
SKU:R4-1-2430-HIP |
R4-1-2430-HIP | |
36" x 48" High Intensity Prismatic |
Do Not Pass | 1 to 4: $247.94 5 to 9: $235.54 10 +: $223.15 |
SKU:R4-1-3648-HIP |
R4-1-3648-HIP | |
48" x 60" High Intensity Prismatic |
Do Not Pass | 1 to 4: $351.23 5 to 9: $333.67 10 +: $316.11 |
SKU:R4-1-4860-HIP |
R4-1-4860-HIP |
In Stock - Usually ships same or next business day.
OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum| MATERIAL | SIZE | WORDING | PRICE | ADD TO CART | Catalog Part # |
|---|---|---|---|---|---|
OmniCube™ Full Cube (UPG) |
18" x 24" OmniCube™ Full Cube (UPG) |
Do Not Pass | 1 to 4: $73.92 5 to 9: $70.22 10 +: $66.53 |
SKU:R4-1-1824-UPG |
R4-1-1824-UPG |
24" x 30" OmniCube™ Full Cube (UPG) |
Do Not Pass | 1 to 4: $107.80 5 to 9: $102.41 10 +: $97.02 |
SKU:R4-1-2430-UPG |
R4-1-2430-UPG | |
36" x 48" OmniCube™ Full Cube (UPG) |
Do Not Pass | 1 to 4: $274.89 5 to 9: $261.15 10 +: $247.40 |
SKU:R4-1-3648-UPG |
R4-1-3648-UPG | |
48" x 60" OmniCube™ Full Cube (UPG) |
Do Not Pass | 1 to 4: $469.59 5 to 9: $446.11 10 +: $422.63 |
SKU:R4-1-4860-UPG |
R4-1-4860-UPG |
In Stock - Usually ships same or next business day.
Do Not Pass means that drivers are not permitted to overtake or pass other vehicles in the same lane, usually in areas where visibility is limited, or when approaching a curve, hill, intersection, or other hazardous conditions; violating this restriction can result in collisions, endangerment of other road users, and may lead to traffic violations and penalties.
Do Not Pass Sign Specifications
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
See catalog page 10.
Available Reflective Finishes:
- Most common reflective finish used for traffic signs
- Meets federal minimum requirements
- 10 Year Outdoor Durability
- Brightest and most visible
- Exceeds federal minimum requirements
- 10 Year Outdoor Durability
Sign Posts
Sign Installation Hardware
Sign Installation Hardware
Other Passing Zone Signs
R4-1 Sign Specifications
| Legend: | DO NOT PASS |
| MUTCD Sign Code #: | R4-1 |
| Shape: | Vertical Rectangle |
| Color: | BLACK on WHITE |

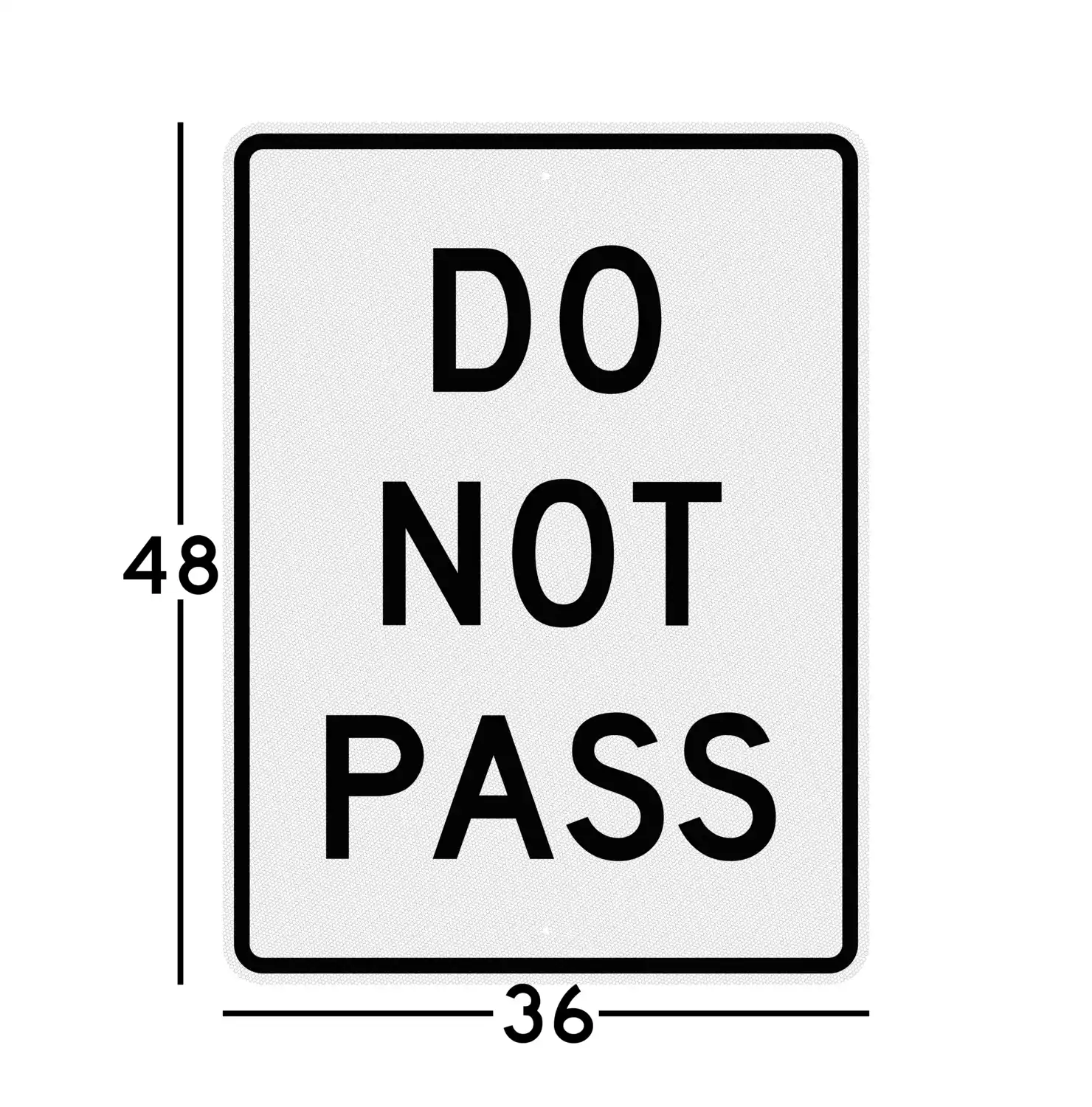

| Available Sizes and Weights: | Size: 18" x 24"; Ship Weight: 3.7 lbs |
| Size: 24" x 30"; Ship Weight: 6.2 lbs | |
| Size: 36" x 48"; Ship Weight: 14.9 lbs | |
| Size: 48" x 60"; Ship Weight: 24.8 lbs | |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |
| Full Description: | R4-1 has a white background color. The text and border are black and it is in the shape of a vertical rectangle. |

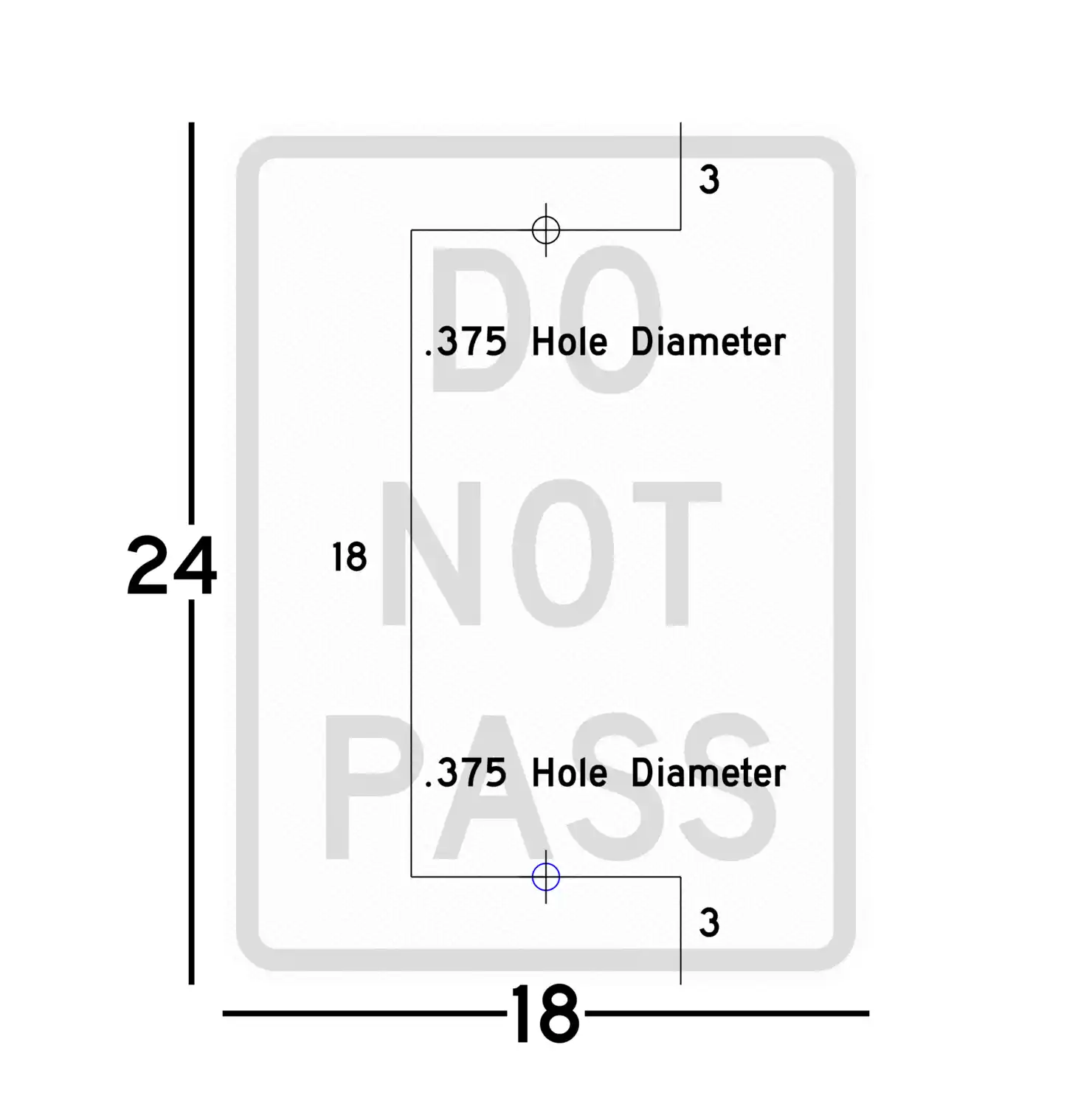

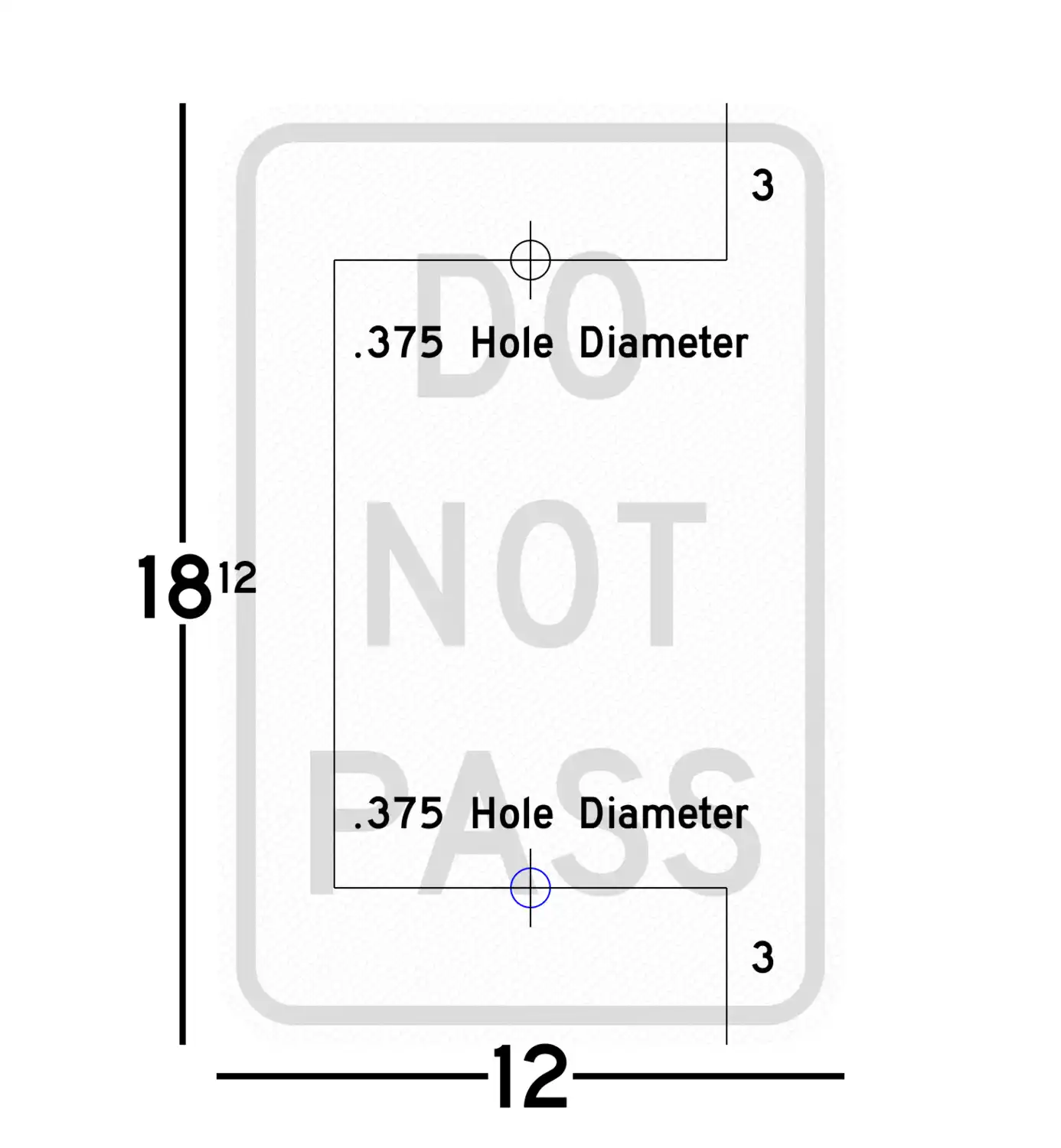

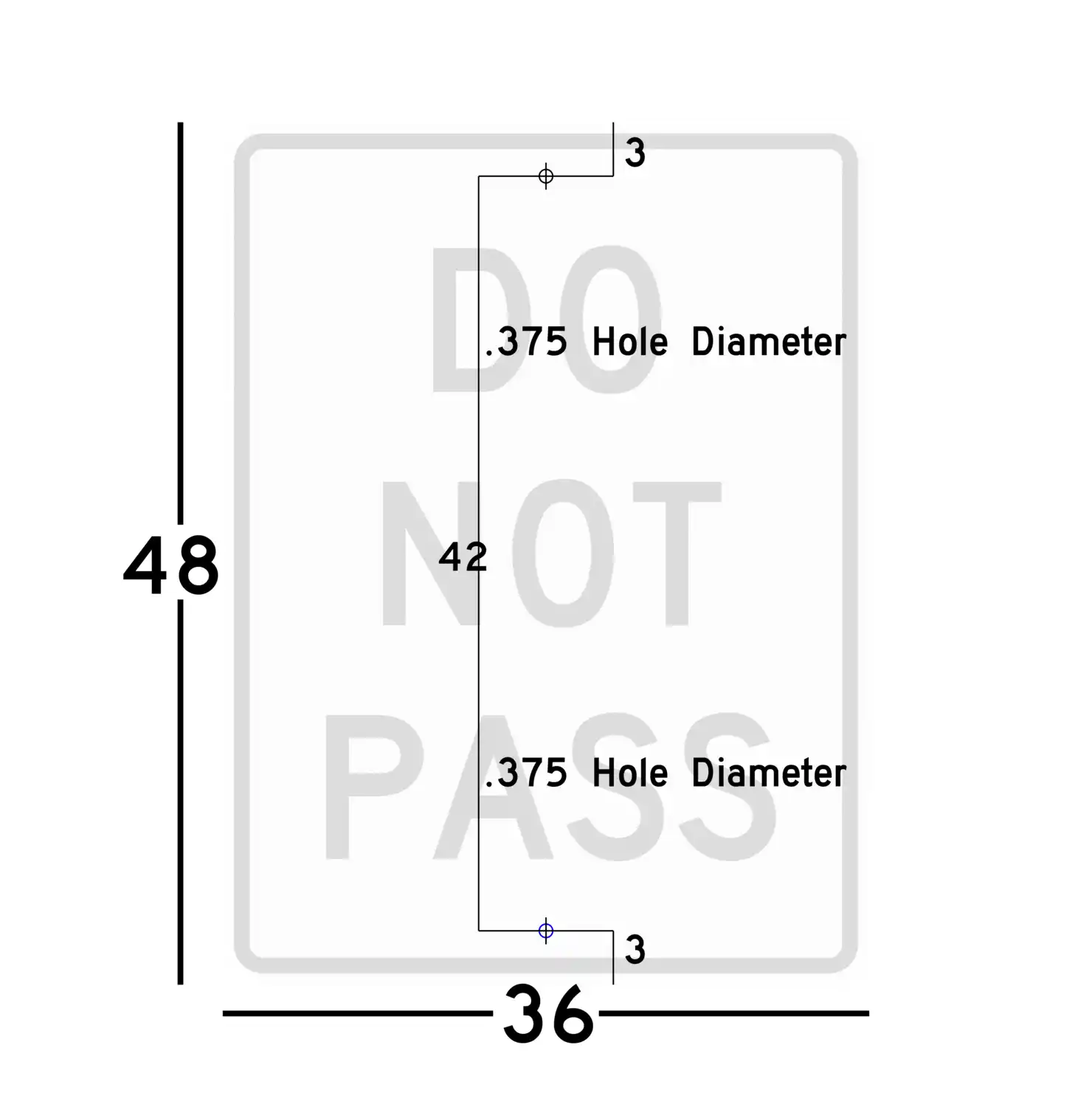

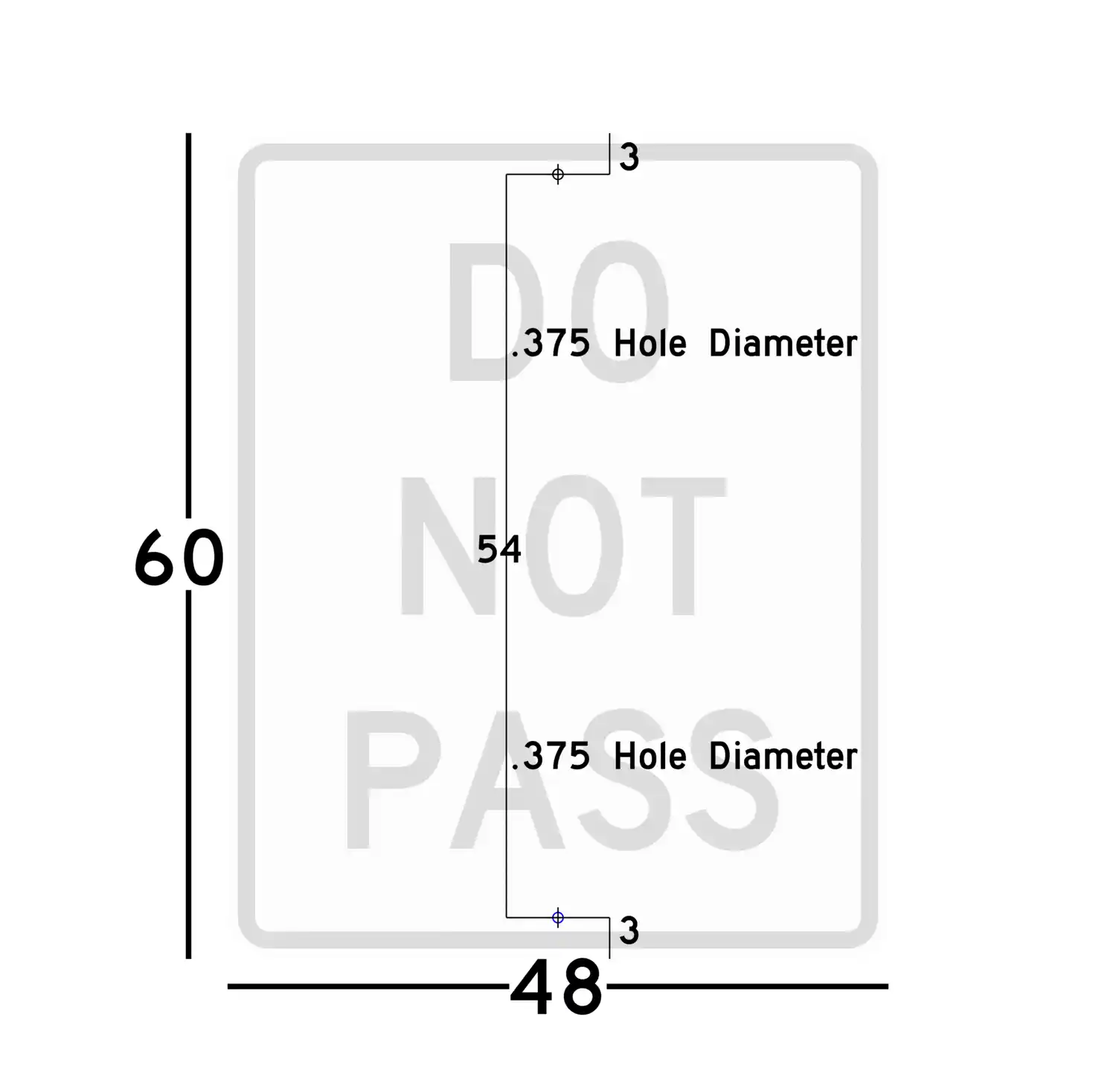

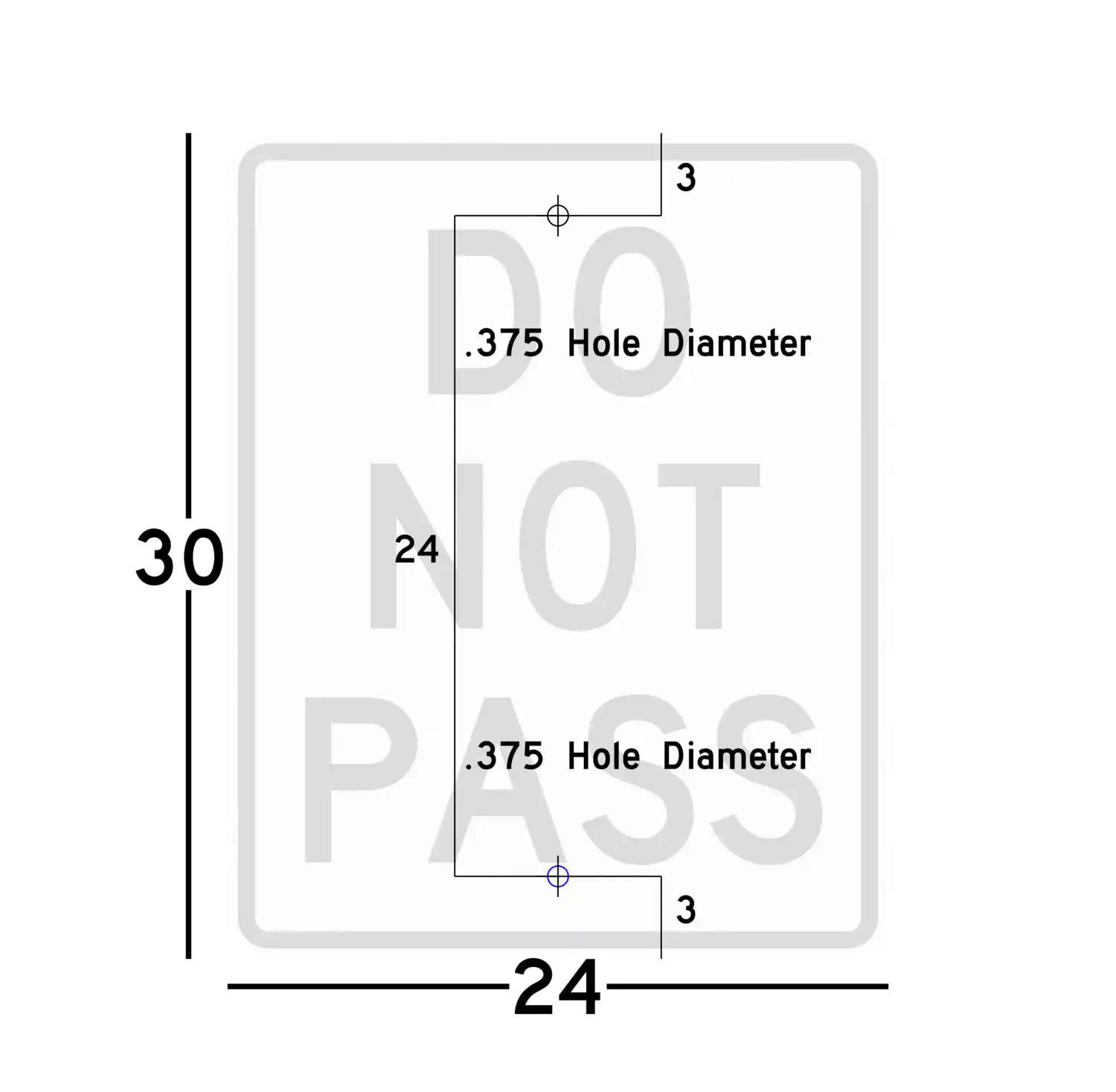

| Mounting Hole Placement: |  |
