No Parking Fire Lane Sign (R7-6-9)
The R7-6-9 No Parking Fire Lane sign prohibits parking in a designated fire lane so emergency access stays clear. It is a white regulatory parking sign posted along the fire lane.
One size, two prismatic reflective grades — $37.95 to $48.51 per sign, or from $34.16 at volume.
- 5 to 9
- $36.05
- 10 +
- $34.16
✓ In stock Free Shipping
R7-6-9-1218-HIP(None)Designed in accordance with the MUTCD design standards, on rust-proof .080" aluminum.
- In stock
Ships in 1-3 Business Days
Free Shipping on this item
Volume pricing
at 5+
In stockBrowse the collection of Fire Lane Parking Signs
All R7-6-9 prices
Every size and sheeting combination. Click to select.
| Size | High Intensity Prismatic | OmniCube™ Full Cube |
|---|---|---|
| 12 x 18 | $37.95 each (1-4) 5-9: $36.05 10+: $34.16 | $48.51 each (1-4) 5-9: $46.08 10+: $43.66 |
R7-6-9 Sign Specifications
| Legend: | NO PARKING FIRE LANE |
|---|---|
| Sign Code #: | R7-6-9 |
| Shape: | Vertical Rectangle |
| Color: | RED on WHITE |
| Available Sizes and Weights: | Size: 12 x 18; Ship Weight: 1.9 lbs |
| Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
| OmniCube™ Full Cube Prismatic Reflective on .080" Aluminum | |

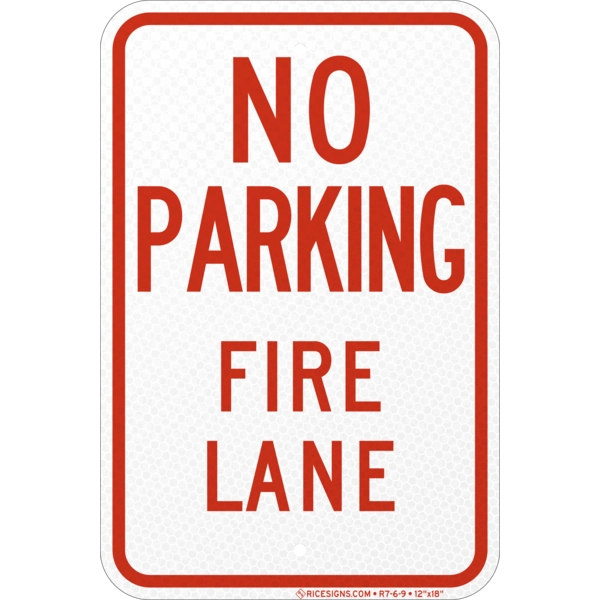

| Full Description: | R7-6-9 has a white background color. The text and border are red and it is in the shape of a vertical rectangle. |
R7-6-9 Purpose and Use
The No Parking Fire Lane sign keeps a designated fire lane clear so engines, ladder trucks, and rescue crews reach a building without obstruction.

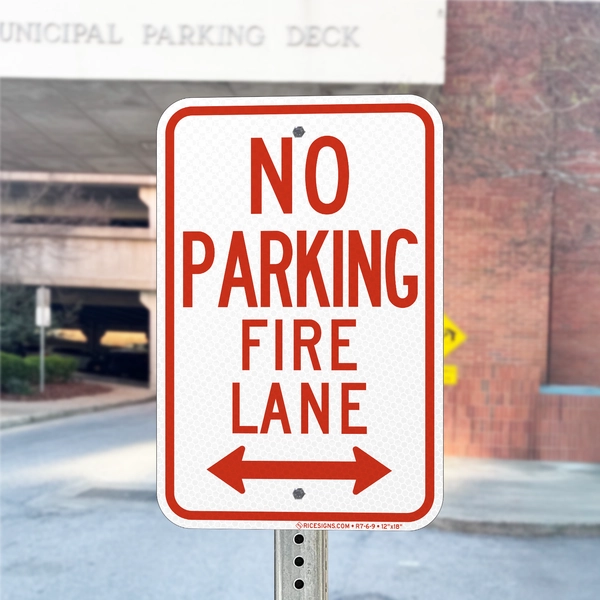

Run them the full length of a marked fire lane at commercial, multi-family, school, and healthcare properties, spaced so one sign is always in view.
R7-6-9 Questions
Is the No Parking Fire Lane sign a federal MUTCD sign?
No. Fire lane signage is specified by the fire code and your local fire marshal rather than the MUTCD. The R7-6-9 is built to MUTCD design standards so it matches the rest of your site signage.
How far apart should fire lane signs be spaced?
Space them so at least one sign is visible from every point in the marked lane. Many jurisdictions set a maximum interval, so confirm the spacing with the authority having jurisdiction before ordering quantities.
R7-6-9 Reflective Sheeting Options

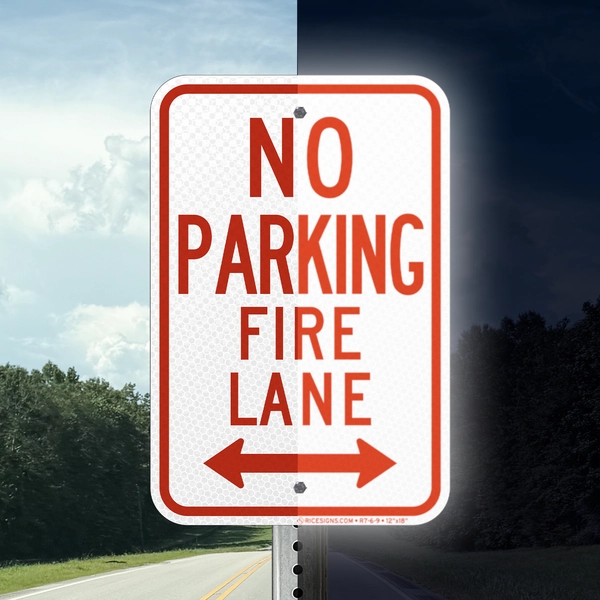

Because the R7-6-9 has to be picked out at night by arriving apparatus crews, the T-11500 OmniCube - up to 60 percent brighter with a 12-year outdoor durability rating - is the safer choice when night visibility matters most, while the T-6500 High Intensity Prismatic delivers proven 10-year durability.
- Most Common Reflective Finish
- Very Reflective At Night
- Required for Most Highway Signs
- 10 Year Outdoor Durability
- Brightest and Most Visible
- Most Reflective At Night
- Up to 60 percent brighter than HIP
- 12 Year Outdoor Durability
The R7-6-9 puts a red legend on a white reflective background, and white returns more light than any other color under ASTM D4956, so nearly the entire face lights up under headlights. That is why stepping up to the T-11500 OmniCube produces such a visible change on this sign: you are brightening the color that already dominates the sign face.
Compare T-6500 and T-11500 OmniCube retroreflectivity, durability and warranty →
R7-6-9 Mounting Hole Pattern and Spacing

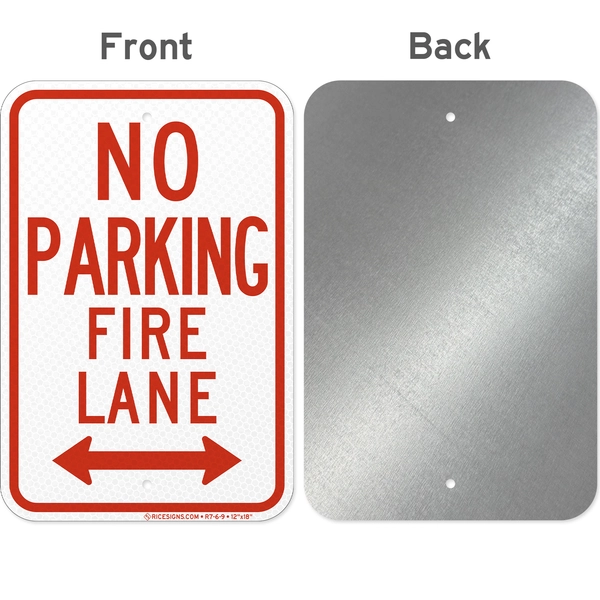

The R7-6-9 has mounting holes on the vertical centerline, equally spaced from the top and bottom edges: the standard pattern for u-channel and square post mounting.
