No Parking Signs
The purpose of No Parking Signs (MUTCD R8-3) is to designate areas where parking is prohibited, ensuring proper traffic flow and adherence to local parking regulations.
MUTCD R8-3 Guidance
No Parking Sign Details:
- Sign is manufactured on durable rust-proof .080" aluminum
- Pre-punched 3/8" mounting holes in top and bottom for easy installation.
- Meets M.U.T.C.D. specifications for highway use.
- See in our catalog on page 13.
In Stock - Usually ships same or next business day.
High Intensity Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
High Intensity Prismatic | 12" x 18" | $34.54 | $32.81 | $31.09 | R8-3-1218-HIP | |
18" x 24" | $58.19 | $55.28 | $52.37 | R8-3-1824-HIP |
Full Cube Prismatic Reflective on .080" Aluminum:
MATERIAL | SIZE | PRICE PER SIGN | ADD TO CART | Catalog Part # | ||
---|---|---|---|---|---|---|
1 to 4 | 5 to 9 | 10 + | ||||
Full Cube Prismatic | 12" x 18" | $44.77 | $42.53 | $40.29 | R8-3-1218-UPG | |
18" x 24" | $66.66 | $63.33 | $59.99 | R8-3-1824-UPG |
Available Reflective Finishes:
High Intensity Prismatic Reflective | Full Cube Prismatic Reflective |
---|---|
|
|
Sign Posts
Sign Installation Hardware
Other Restrictive Parking Signs
Click to view
Click to view
Click to view
Specifications:
Legend: | NO PARKING |
MUTCD Sign Code #: | R8-3 |
Shape: | Vertical Rectangle |
Color: | RED on WHITE |

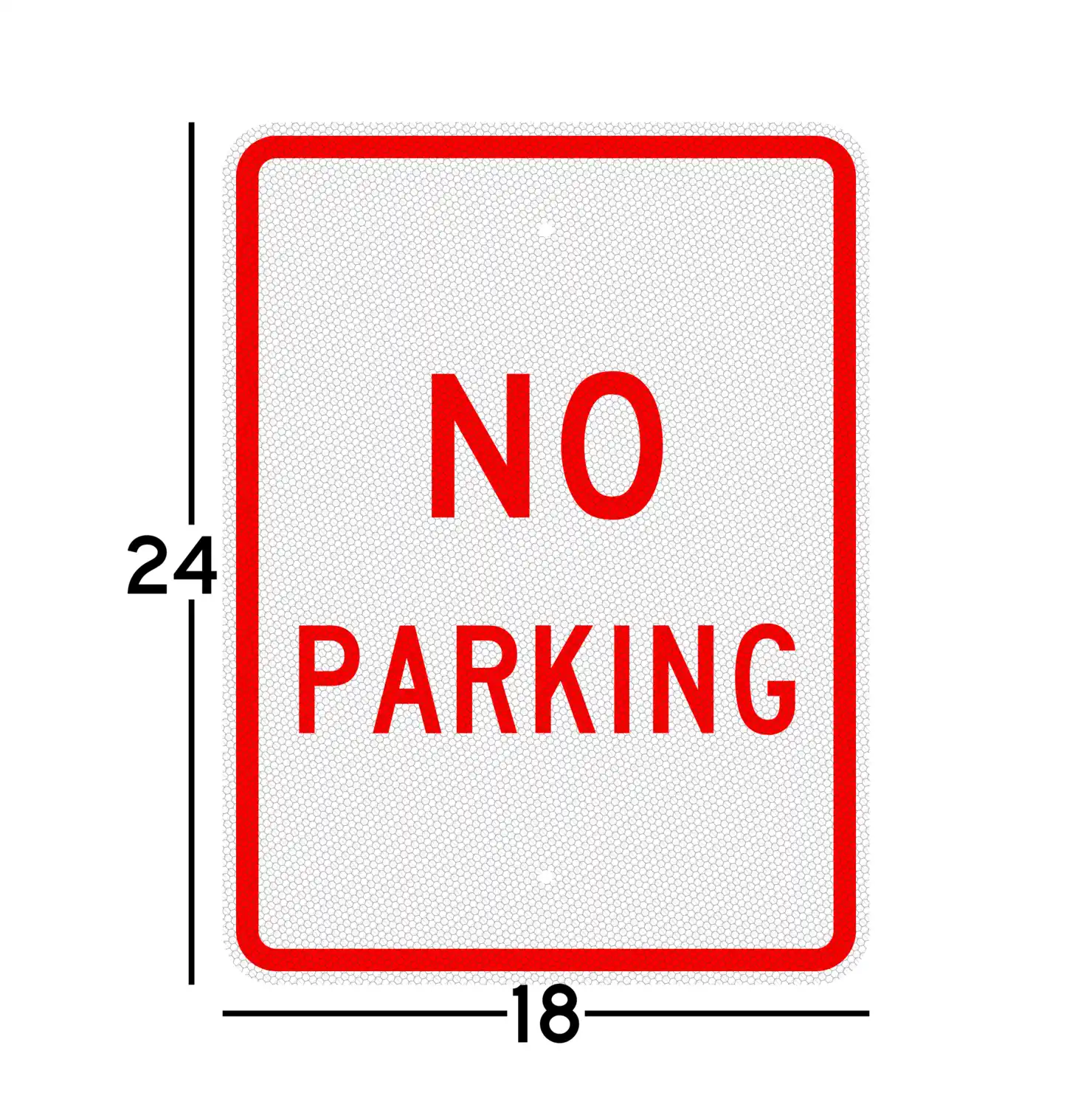

Available Sizes and Weights: | Size: 12" x 18"; Ship Weight: 1.9 lbs |
Size: 18" x 24"; Ship Weight: 3.7 lbs | |
Available Styles: | High Intensity Prismatic Reflective on .080" Aluminum |
Full Cube Prismatic Reflective on .080" Aluminum | |

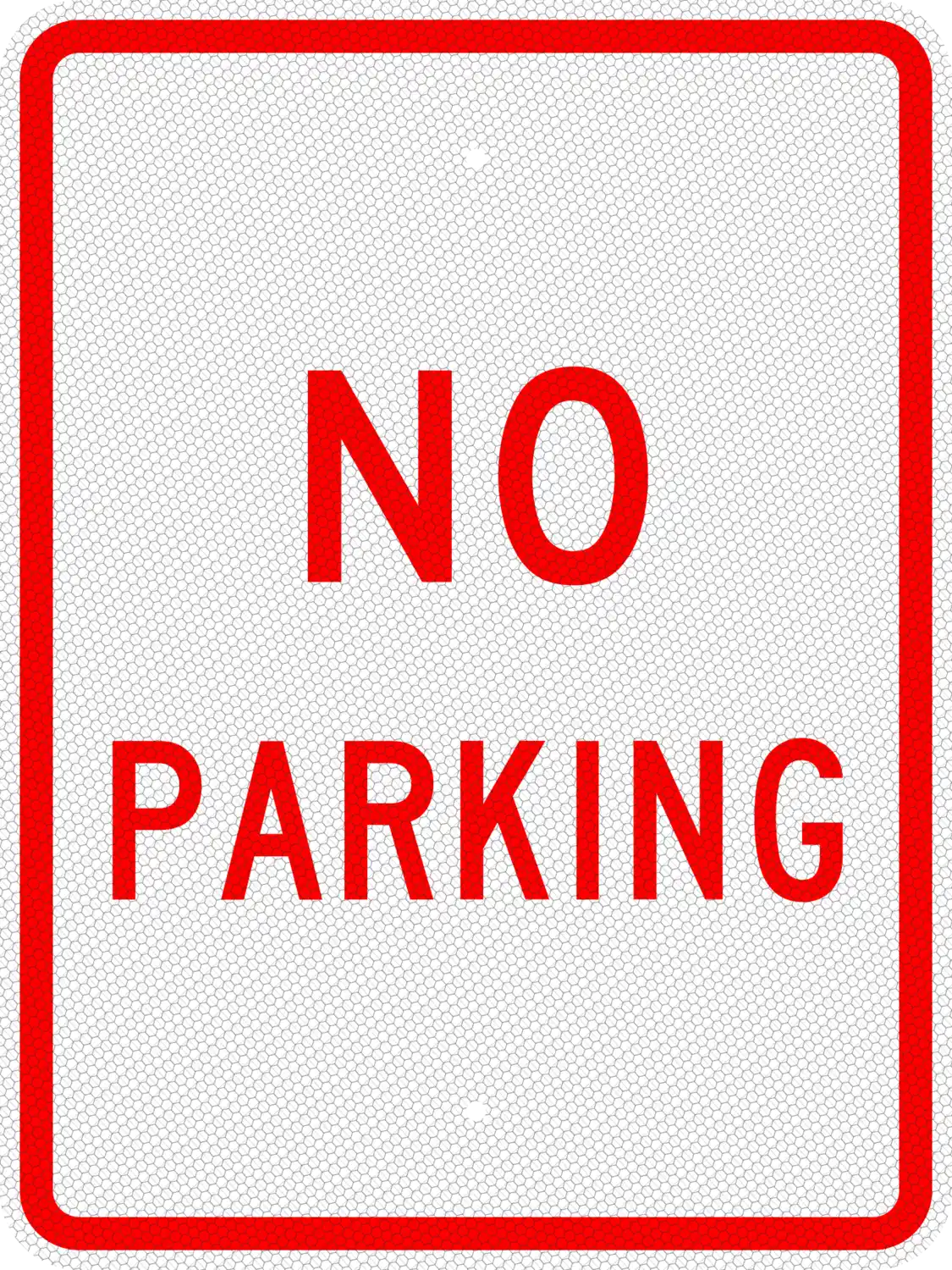

Full Description: | R8-3 have a white background color. The text and border are red and it is in the shape of a vertical rectangle. |

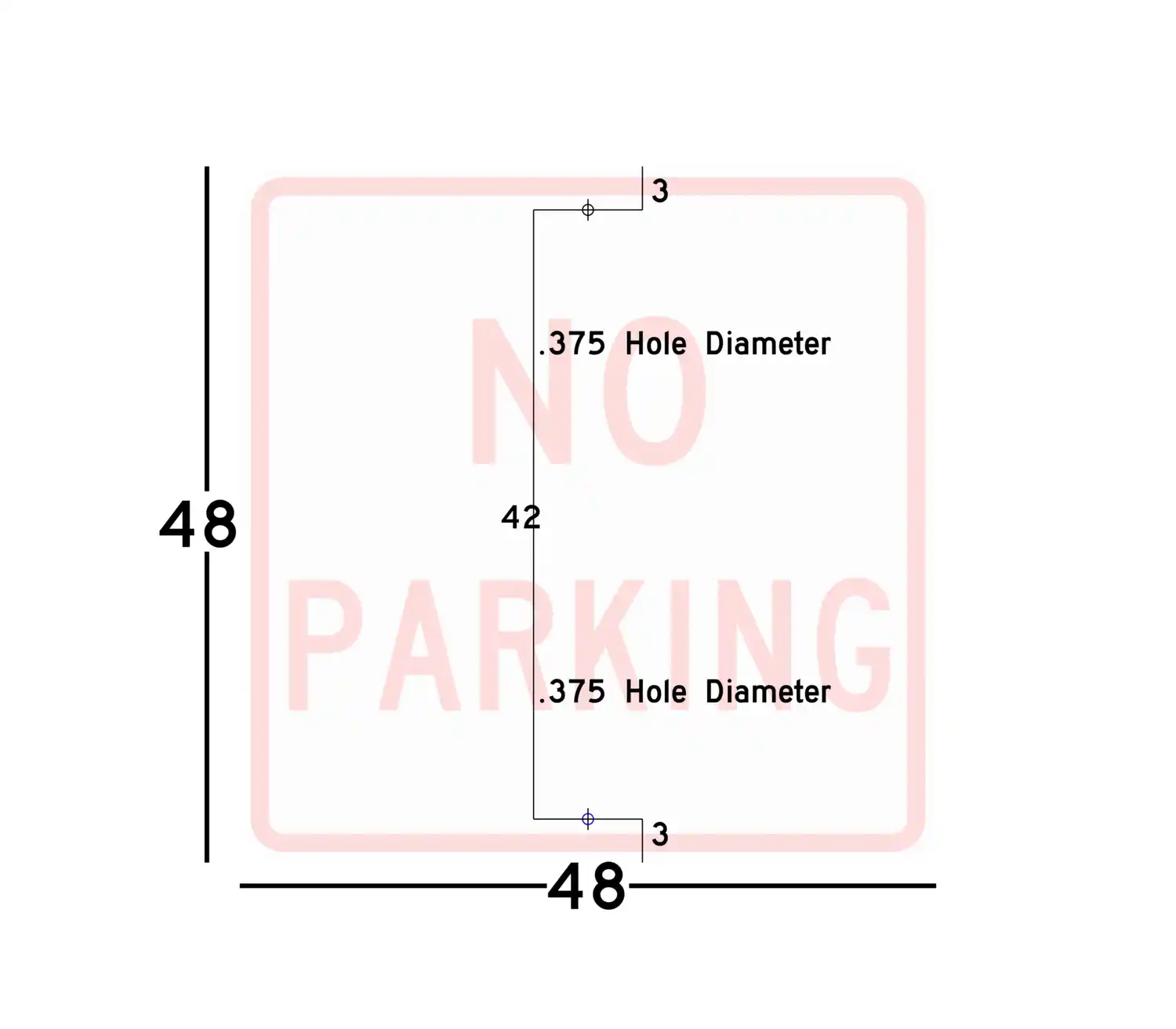

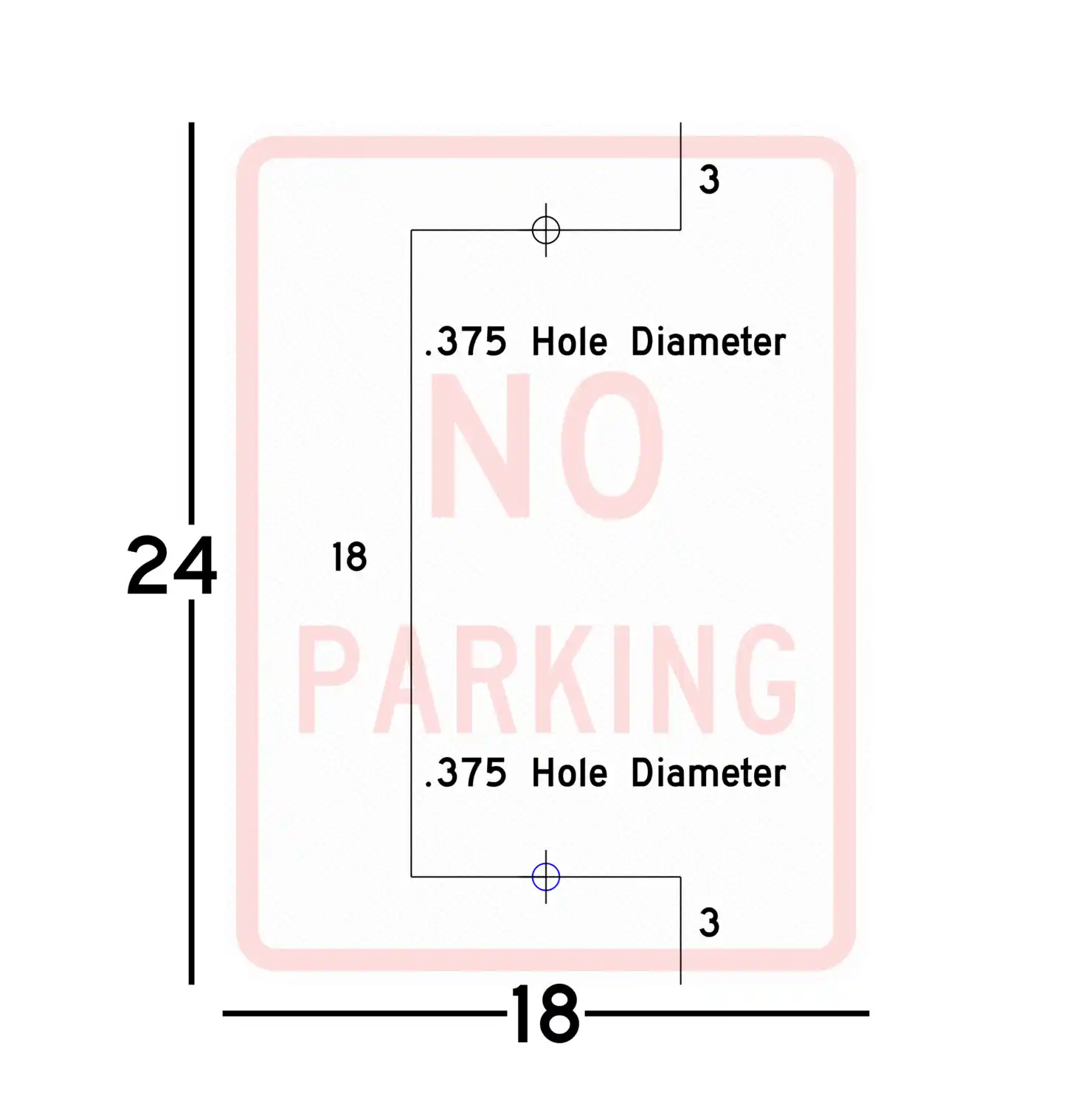

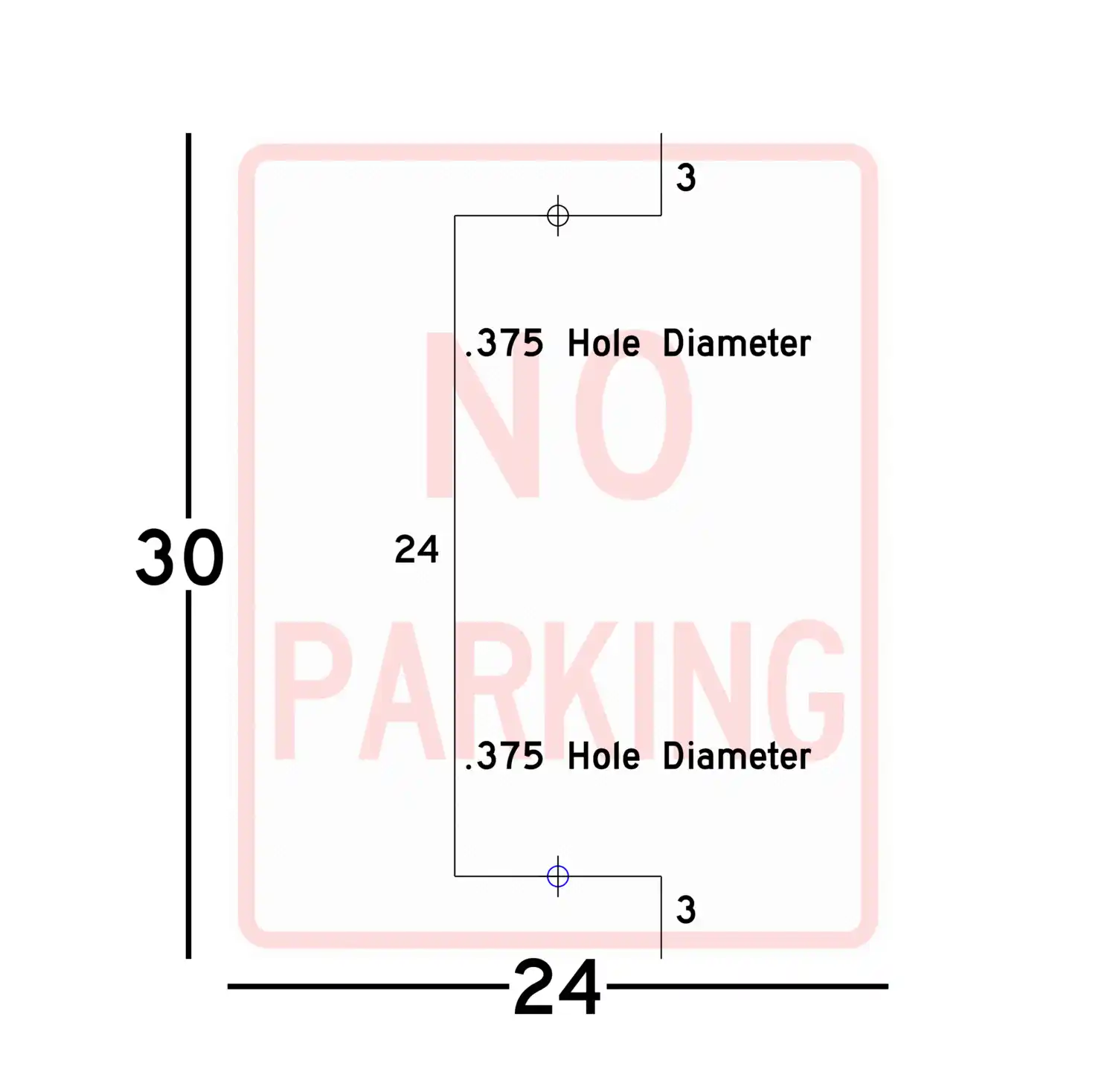

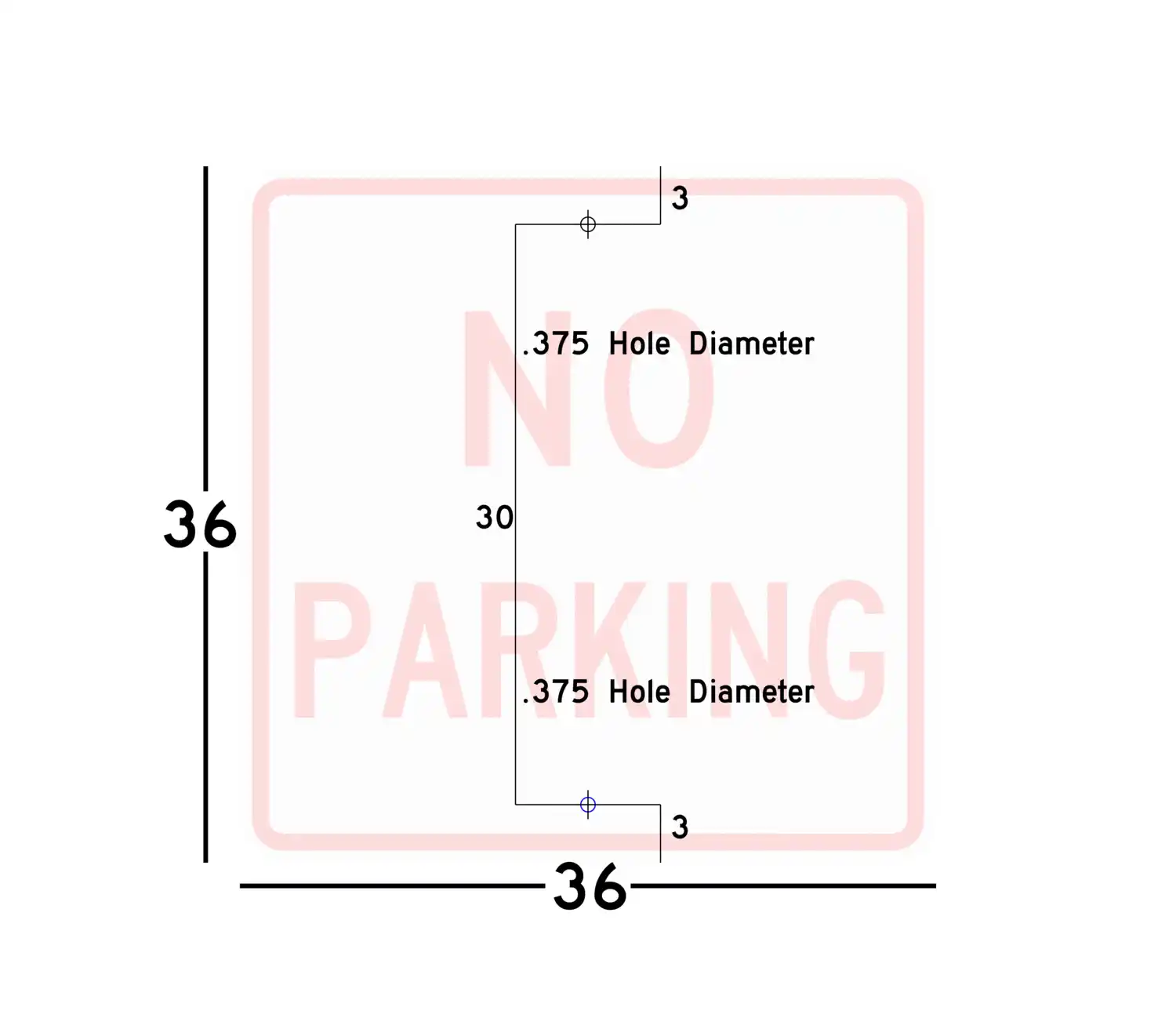

Mounting Hole Placement: |
No Parking Sign Photos:
Pictured: A 12"x18" No Parking sign with optional portable post and base.
Example Use:
At the local pharmacy, located in a bustling urban neighborhood, a 'No Parking' sign is prominently displayed right outside their main entrance. This specific placement is purposeful. Given the high volume of traffic and the need for customers to quickly access the pharmacy, especially for emergency medication pick-ups or consultations, it is essential that the entrance remains unblocked at all times. Furthermore, by preventing unauthorized parking, the pharmacy can maintain a steady flow of operations, facilitating a smoother and more efficient customer experience.
